Digital display closed-loop driver parameter model | ||||||||||||
Model | Phase number | Input voltage | Segmentation | Current | Signal voltage | Adaptive motor | ||||||
HQS57H | Two | 24-48VDC | 200-60000 | 1.0A-6.0A | 5V-24V | NEMA 23 | ||||||
HQS86H | Two | 18-80(AC),24-110(DC) | 200-60000 | 1.0A-8.2A | 5V-24V | NEMA 34 |
Stepper motor model parameters | ||||||||||||||||||
Model | Step angle (°) | Holding torque(N.m) | Phase current(A) | Phase inductance(mH) | Phase resistance(Ω) | Rotor inertia(g.㎡) | Weight(Kg) | Motor length(mm) | Shaft diameter(mm) | |||||||||
57BYG56EC1000 | 1.8 | 1.2 | 3.0 | 5.2 | 1.5 | 260 | 1.0 | 77 | 8 | |||||||||
57BYG76EC1000 | 1.8 | 1.8 | 4.0 | 3.5 | 1.0 | 460 | 1.4 | 97 | 8 | |||||||||
57BYG112EC1000 | 1.8 | 3.2 | 5.0 | 4.2 | 1.3 | 550 | 1.8 | 133 | 8 |
Stepper motor model parameters | ||||||||||||||||||
Model | Step angle (°) | Holding torque(N.m) | Phase current(A) | Phase inductance(mH) | Phase resistance(Ω) | Rotor inertia(g.㎡) | Weight(Kg) | Motor length(mm) | Shaft diameter(mm) | |||||||||

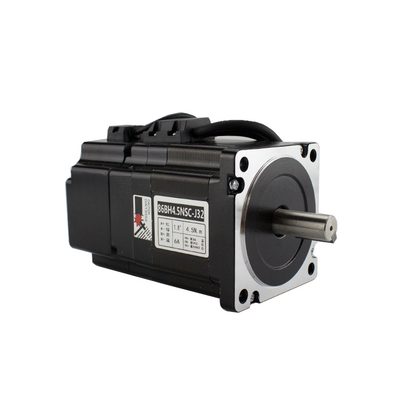

86BYG80EC1000 | 1.8 | 4.5 | 4.0 | 4.4 | 1.0 | 1500 | 2.8 | 101 | 14 | |||||||||
86BYG118EC1000 | 1.8 | 8.5 | 5.0 | 5.5 | 0.97 | 4100 | 3.8 | 139 | 14 | |||||||||
86BYG156EC1000 | 1.8 | 12 | 6.0 | 6.0 | 1.2 | 6200 | 5.2 | 175 | 14 |
