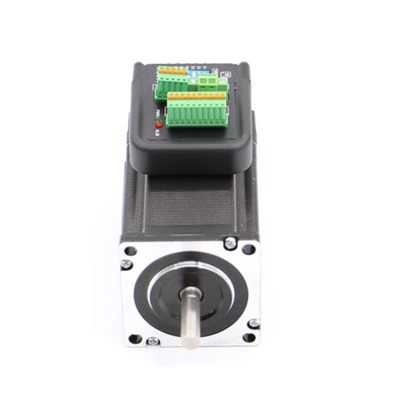

NEMA 24 Integrated Closed Loop Stepper Motor 36v 3.0nm 2 Phase Hybrid Stepper Motor With 8*31mm Driver

10 Pieces
MOQ
$65.00(10 - 99 Pieces) $60.00(100 - 999 Pieces) $55.00(>=1000 Pieces)
価格
NEMA 24 Integrated Closed Loop Stepper Motor 36v 3.0nm 2 Phase Hybrid Stepper Motor With 8*31mm Driver
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 3months-1year
Model Number: iHSS60-36-30-31
Phase: 2
Type: Hybrid
Current / Phase: 5A
Product name: Integrated Close Loop Stepper Motor
Model name: iHSS60-36-30-31
Voltage: 36V
Holding Torque: 3.0N.m
Step Angle: 1.8degree
Current: 5.0A
Shaft size: 8*31mm
D-cut size: 25mm
Body length: 118mm
Keywords: Integrated Closed Loop Stepper Motor
証明: ce, ISO, RoHS
基本情報
証明: ce, ISO, RoHS
Model Number: iHSS60-36-30-31, iHSS60-36-30-31
お支払配送条件
Packaging Details: with export carton . big quantity with pallet
Supply Ability: 1000 Piece/Pieces per Month
製品の説明
Specification
item
value
Warranty
3months-1year
Place of Origin
China
Brand Name
jkongmotor
Model Number
iHSS60-36-30-31
Phase
2
Type
Hybrid
Current / Phase
5.0A
Certification
ce, ISO, RoHS
Product name
Integrated Close Loop Stepper Motor
Model name
iHSS60-36-30-31
Voltage
36V
Holding Torque
3.0N.m
Step Angle
1.8degree
Current
5.0A
Shaft size
8*31mm
D-cut size
25mm
Body length
118mm
Keywords
Integrated Closed Loop Stepper Motor
Brand: Jkongmotor
Name: Integrated Close Loop Stepper Motor
* Step Angle: 1.8°
* Model Name: iHSS60-36-30-31
* Postion accuracy: 1.8°±0.09
* Number of phase: 2
* Temp rise( Max): 80°C
* Dielectric Strength: 500VDC
* Insulation Class: B
* Current /phase: 5.0A
* DC Resistance: 0.43Ω
* Inductance /phase: 2.0mH
* Holding torque: 3.0Nm
* Inertria: 690g.cm²

The Integrate Stepper Servo Motor is merged the stepper servo driver and motor together. This motor system integrates the servo control technology into the digital stepper drive perfectly. And this product adopts an optical encoder with high speed position sampling feedback of 50 μ s, once the position deviation appears, it will be fixed immediately. This product is compatible the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.
Model Name:
Holding Torque:
Voltage:
Current:
Shaft Size:
D-Cut Size:
Body Length:
iHSS42-24-05
0.48N.m
24V
1.2A
5*24mm
15mm
76mm
iHSS42-24-07
0.7N.m
24V
1.2A
5*24mm
15mm
88mm
iHSS57-36-10
1.2N.m
36V
4.0A
8*21mm
15mm
108mm
iHSS57-36-20
2N.m
36V
5.0A
8*21mm
15mm
127mm
iHSS60-36-30
3N.m
60V
5.0A
8*31mm
25mm
117mm
iHSS86-60-45
4.5N.m
60V
6.0A
14*38mm
73mm
121mm
iHSS86-80-85
8.5N.m
80V
6.0A
8*21mm
73mm
141mm
* Integrated compact size for saving mounting space
* Without losing step, High accuracy in positioning
* 100% rated output torque
* Variable current control technology, High current efficiency
* Small vibration, Smooth and reliable moving at low speed
* Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
* User-defined micro steps
* No adjustment in general applications
* Over current, over voltage and over position error protection
* Green light means running while red light means protection or off line
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2. Do you provide the samples?
YES. Our company can provide the samples to you

3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.

4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

6. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
